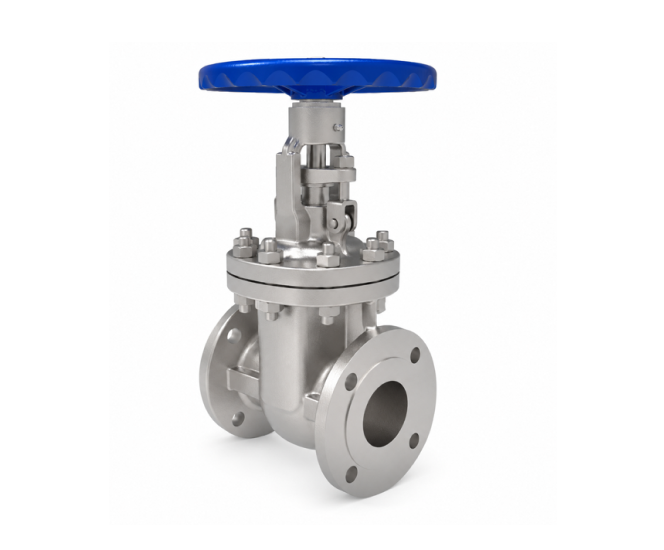

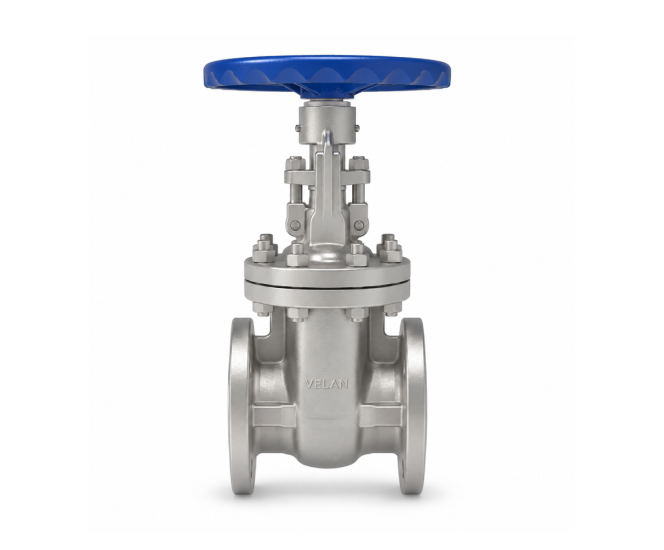

The Velan API 600 Cast Steel Gate Valve is a heavy-duty isolation valve designed for reliable on/off service in oil and gas, refining, petrochemical, power, and other demanding industrial applications.
The Velan API 600 Cast Steel Gate Valve is a heavy-duty isolation valve designed for reliable on/off service in oil and gas, refining, petrochemical, power, and other demanding industrial applications.
Flanges:
ASME Classes: 150–300: 1⁄16” raised face
ASME Classes: 600–1500: ¼” raised face
Finish: 125–250 AARH for all valves.
Rotating stem nut is Austenitic ductile iron Gr. D-2C renewable in line (as shown).
When handwheel is used, thrust bearings are supplied as follows:
| Universal trim | 13Cr stem, wedge in CA 15 or 13Cr faced, and CoCr alloy faced seat API Trim 8 suitable for applications up to 850°F (454°C). |
|---|---|
| Seat face | CoCr alloy hardfaced, ground and lapped to a mirror finish. |
| Size Range | NPS 2 - 64 (DN 50 - 1600) |
| Pressure Class | ASME classes 150 – 1500 |
| Standard Connections | Flanged |
